20 Feb 2015

A selection of the best technical images from Barcelona courtesy of Sutton Images

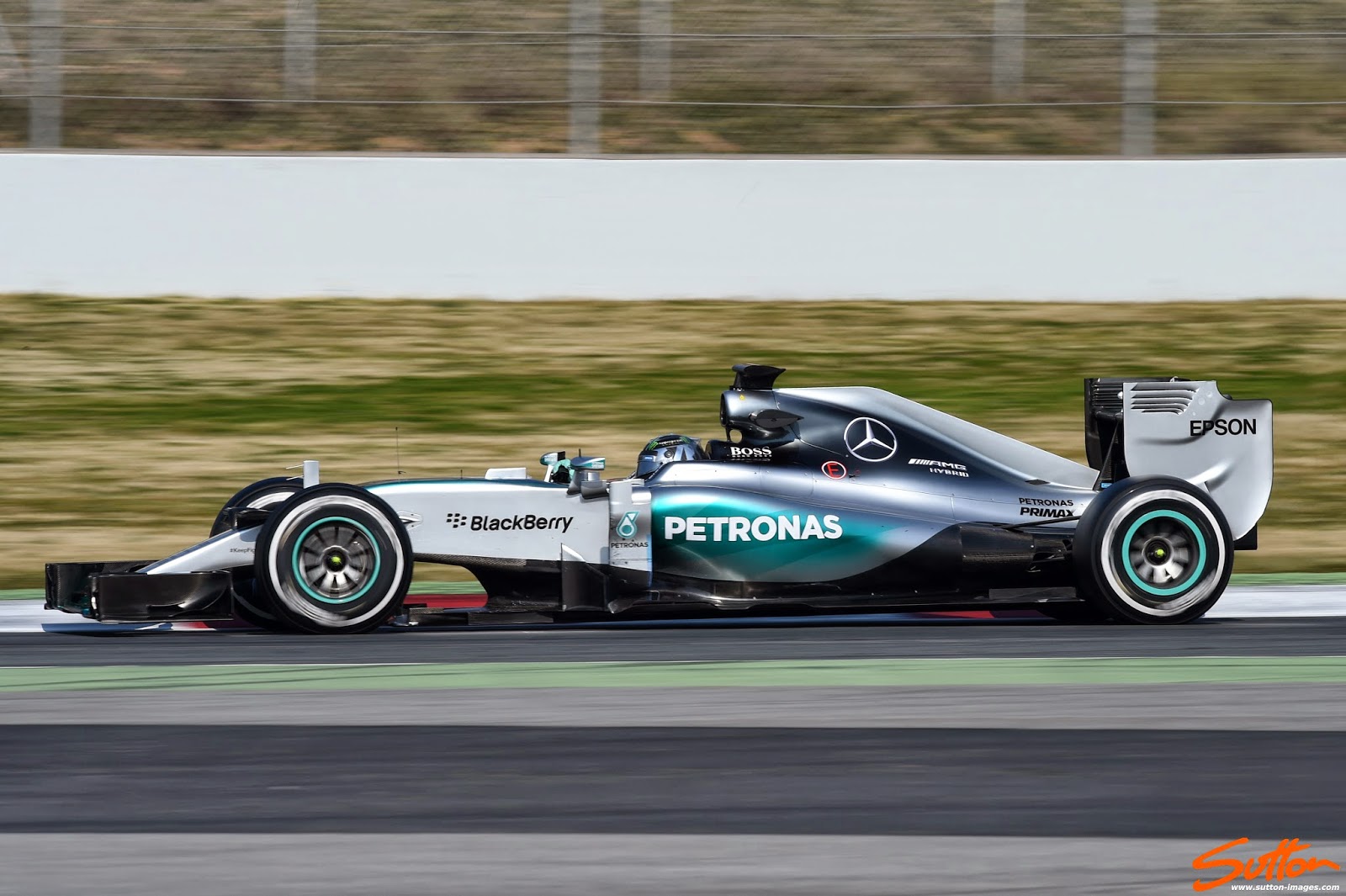

 Mercedes W06 - Kiel probe array measuring wheel rake upfront whilst the team continue to assess their new rear wing
 Ferrari SF15-T - Kiel probe array measuring the diffuser flow and rear wheel wake
 McLaren MP4-30 kiel probe arrays mounted behind the front wheels to measure their wake

 Mercedes W06 - sparking as the car bottoms out
 Red Bull RB11 - Note the polysil mounted rims which are also knurled to control/dissipate heat
 Red Bull RB11 - Overhead shows off the cars detail, note the RB10 doesn't run the lower beam wing slice like its predecessor and so they mount the Y100 winglet (monkey seat) astride the crash structure).   Note the gold leaf on the items in the vicinity of the exhaust outlet too
Red Bull RB11 - Note the vertical strake in the tyre deck region is now singular rather than the twin configuration they'd previously employed
