4 Sep 2015


A selection of the best technical images from the Italian GP courtesy of Sutton Images

Thursday

Ferrari SF15-T front wing from above, same low downforce configuration as used in Belgium, with the triangular upper flap
Ferrari SF15-T rear end detail, note lower downforce rear wing with shallower AoA and lower DRS actuator pod





McLaren MP4-30 front suspension and brake duct detail

McLaren MP4-30 low downforce rear wing, note how short the upper flap is, whilst the usual application of a gurney trim is also absent.
McLaren MP4-30 steering wheel detail
McLaren MP4-30 underside of the front wing shows how the strakes are used to control separation
McLaren MP4-30 pit stop practice, the team use the old longer nose, rather than damage a new one

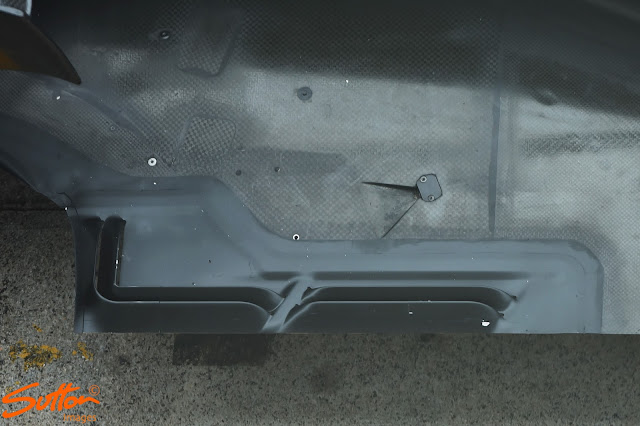

McLaren MP4-30 floor detail, note the intricate slotted arrangement ahead of the rear wheel designed to control 'tyre squirt'



Mercedes W06 rear end detail, note this is a lower downforce configuration version of the 'spoon' rear wing, featuring a less pronounced central belly.
Mercedes W06 floor detail

Sauber C34 front wing selection, upper is the newer variant, still un-raced since its arrival in China.  The endplate, endplate canard and cascade arrangement are all different in their approach
Sauber C34 front wing selection, upper is the newer variant, still un-raced since its arrival in China. Note the difference in flap design, the upper (newer) variant much closer to the leading teams in terms of design, which undoubtedly changes how both the Y250 vortex is formed and how the wing creates downforce.
Manor F1 MR03B front wing



Mercedes W06 front wing, note the short chord upper flaps, which have been cut down by the team to reduce drag and change how the Y250 vortex forms
Mercedes W06 rear end detail, note the shallower 'spoon' rear wing, also worth noting that at this stage of the build the team had yet to install the exhaust pipework


Williams FW37 rear wing, note the low angle of attack and almost twisted upper flap (in the centre) the flap has also been cut down, changing the way the airflow interacts with the endplates and the way in which tip vortices are formed

Ferrari SF15-T front brake duct


Red Bull RB11 Turning vanes
Mercedes W06 front brake duct

Williams FW37 rear brake duct
Williams FW37 front brake duct
Williams FW37 rear brake duct
Mercedes W06 - another angle of the shallower 'spoon' rear wing







Ferrari SF15-T - Another angle of the lower downforce rear wing, note the use of only 3 louvres in the endplate to match the lower angle of incidence of the flaps
Toro Rosso STR10 low downforce rear wing, which has only a single endplate louvre to match the very shallow AoA of the flaps





Mercedes W06 floor detail


Red Bull RB11 rear wing, note how the leading edge has been swept back at the corners, changing how downforce is accrued and the shaping of the tip vortices



Friday

Ferrari SF15-T with flo-viz applied to the rear wing to check it is operating as required
Red Bull RB11 - Flo-viz applied to the underside of the nose and front wing mounting pylons


Mercedes W06 - GoPro camera's mounted either side of the driver, looking down toward the tyres and assessing how the changes in settings by Pirelli affect performance


Lotus E23 using a Kiel probe array (wrapped around the front wheel) to measure how the airflow has been changed around the front wheel.  As they continue to assess their front wing and/or the changes imposed by Pirelli at Monza

McLaren MP4-30 flo-viz applied to the rear wing to make sure changes made to the wing do not adversly affect performance


Red Bull RB11 - Flo-viz applied to the helmet of Danil Kvyat

Daniel Ricciardo's helmet also sprayed with flo-viz
McLaren MP4-30 with flo-viz applied to the front wing for correlation purposes
Red Bull RB11 - More flow-viz, this time likely ejected from the 'S' duct as the underside of the nose had been painted



Williams FW37 rear end detail
Red Bull RB11 - rear wing being installed on the car





Mercedes W06 steering wheel detail
Williams FW37 steering wheel detail


Red Bull RB11 steering wheel detail
Williams FW37 rear end detail
Mercedes W06 front wing close up


Red Bull RB11 rear wing endplate and diffuser detail

Mercedes W06 front wing close up
